Hydrosol 47 mm filter holder, stainless steel
基本信息
| eCl@ss | 32031613 |
| NACRES | NB.24 |

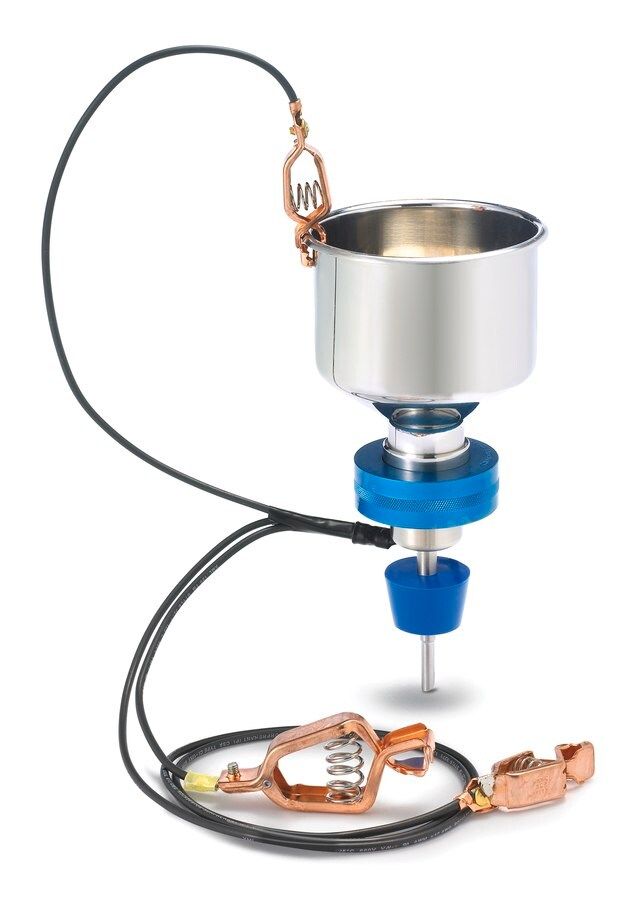

| General description【一般描述】 | The Hydrosol filter holder is designed for the filtration of flammable liquids. Unlike other filter holders, the Hydrosol filter holder includes a grounding unit to prevent sparking from static discharge, which can be a safety hazard. Applications: Vacuum Filtration of Flammable Liquids XX2004720 Hydrosol Filter Holder, 47 mm, stainless steel Replacement Parts XX2004704 Funnel and Locking Ring Assembly, stainless steel XX2004708 Support Screen, 47 mm, stainless steel XX2004702 Base with Screen, gasket and support XX2004703 Gasket, PTFE XX2004718 No. 8 Stopper, 9.5 mm (3/8 in.) hole, silicone XX20047RK Replacement Parts Kit for Hydrosol Filter Holder Accessories XX1004705 Vacuum Filtering Flask, 1 L XX1004744 Vacuum Filtering Flask, 4L XX7100004 Tubing 3/16 in. I.D. x 140 cm, silicone XX6200006P Filter Forceps, blunt end, stainless steel XX2604735 3-place Manifold, 47 mm, PVC XX2504735 3-place Manifold, 47 mm, stainless steel XX2504700 6-place Manifold, 47 mm, stainless steel WP6211560 High Output Pump, 115 V/60 Hz WP6222050 High Output Pump, 220 V/50 Hz WP6210060 High Output Pump, 100 V/50-60 Hz |
| Principle【原理】 | 真空 |
产品性质
| Quality Level【质量水平】 | 100 |
| material【物料】 | Nylon wheel (lock) PTFE seal anodized aluminum lock ring silicone stopper stainless steel base stainless steel funnel(s) stainless steel support screen(s) (for filter) |
| H【高度】 | 22.9 cm |
| diam.【直径】 | 11.4 cm |
| filter diam.【过滤器直径】 | 47 mm |
| filtration area【过滤面积】 | 9.6 cm2 |
| funnel capacity【漏斗容量】 | 650 mL |
| prefilter diam. | 35 mm , thick depth prefilter 47 mm , membrane prefilter |
| fitting【配件】 | inlet funnel No. 8 outlet stopper for standard 1 L filtering flask (perforated silicone) |
| application(s) | filtration |
| compatibility【相容性】 | for use with Hydrosol Filter holder |
| shipped in【运输】 | ambient |
