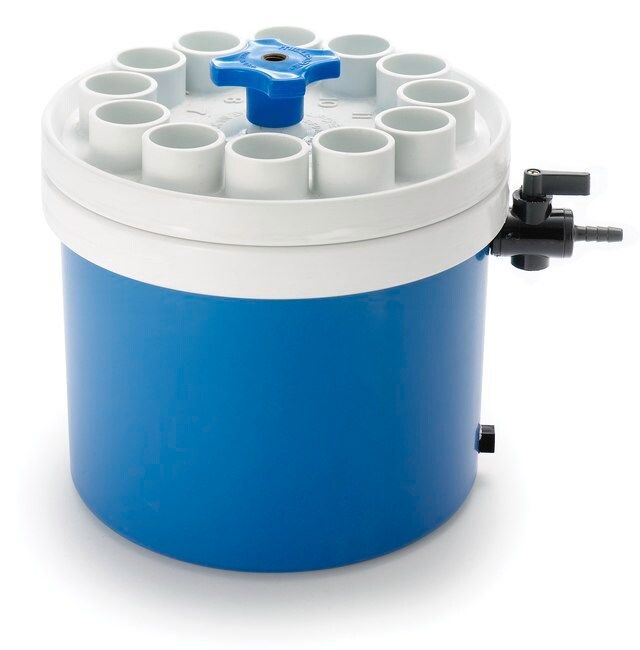

1225 Sampling Manifold
| 产品编号： | 4152839 |
| 规格： | Accessories for filter holders for sample preparation. |
| 包装规格： | 1 EA |
| 产品类别： | 进口试剂 |
| 品牌： | Millipore |
| 优惠价： | 立即咨询 |
基本信息
| eCl@ss | 32031613 |
| NACRES | NB.24 |
| General description【一般描述】 | Simultaneously vacuum filter 12 samples for rapid analysis of retentate or filtrate. Numbered positions on the filter plate assure accurate sample tracking. Sealing stoppers maintain vacuum on unused sample cups. Accessory extension barrels increase sample volumes from 15 to 50 mL. Applications General Filtration of 15 to 50 mL Samples, Preparation for Scintillation Counting XX2702550 1225 Sampling Manifold Replacement Parts YY2214257 Hand Knob 5162 Top Plate XX2702509 Filter O-ring, silicone 5163 Support Plate XX2702510 Support Screen, 25 mm, polypropylene XX11000PP Ball Valve, glass-filled polypropylene XX2504755 Tubing, 1/4 in. x 23 in., latex Accessories XX2702552 Chamber O-rings and Plug Set XX2702555 Sample Cup Extension Barrel XX6200006P Filter Forceps, blunt end, stainless steel XX7100004 Tubing 3/16 in. I.D. x 140 cm, silicone |
| Application【应用】 | Accessories for filter holders for sample preparation. |
| Principle【原理】 | 真空 |
| Preparation Note【制备说明】 | Sterilization Method 可高压高温灭菌至少 20 次(支撑网和 O-型圈不能高压高温灭菌) |
产品性质
| Quality Level【质量水平】 | 100 |
| material【物料】 | 316 stainless steel bolt brass insert (for handwheel) glass filled polypropylene chamber glass filled polypropylene nut (for handwheel) glass filled polypropylene plate glass filled polypropylene valve high-density polyethylene plug (for drain) polypropylene rack (test tube) polypropylene support screen(s) silicone seal |
| parameter【参数】 | 15 mL process volume 50 mL process volume (with extension barrel) |
| H【高度】 | 17.7 cm (6.95 in.) |
| filtration area【过滤面积】 | 2.7 cm2 , per filter |
| weight【重量】 | 2.9 kg (6.4 lb) |
| fitting【配件】 | |
| application(s) | filtration |
| compatibility【相容性】 | for use with 24 or 25 mm |
| shipped in【运输】 | ambient |
