Anti-PD-L1 Antibody, clone 10F.9G2

32160702

Programmed cell death 1 ligand 1 (UniProt: Q9EP73; also known as PD-L1, PDCD1 ligand 1, Programmed death ligand 1, B7 homolog 1, B7-H1, CD274) is encoded by the CD274 (also known as B7h1, Pdcd1l1, Pdcd1lg1, Pdl1) gene (Gene ID: 60533) in murine species. PD-1 and PD-1 ligands 1 and 2 (PD-L1 and PD-L2) are B7:CD28 family members that regulate T cell activation and peripheral tolerance. PD-L1 is initially produced with signal peptide (aa: 1-18) sequence, the removal of which yields the mature protein with a large extracellular (aa: 19-238) region that contains an Ig-like V-type domain (aa: 19-127) and an Ig-like C2-type domain (aa: 133-225), followed by a transmembrane domain (aa: 239-259) and a cytoplasmic tail (aa: 260-290). When engaged together with the TCR, the interaction of PD-1 with its ligands delivers an inhibitory signal to T cell proliferation and cytokine production. While PD-L1 is broadly expressed in hematopoietic and non-hematopoietic cells, PD-L2 expression is highly restricted to antigen presenting cells (APCs), including dendritic cells (DCs) and macrophages. The PD-1 pathway plays a key role in the progressive loss of effector T cell responses during chronic HIV infection. Tumor-associated PD-L1 is reported to facilitate apoptosis of activated T cells and stimulate IL-10 production in T cells to mediate immune suppression. These effects can be blocked by some monoclonal PD-L1 antibodies and T cell function can be restored. (Ref.: Chen, L., and Han, X (2015). J. Clin. Invest. 125(9): 3384-3391).

Clone 10F.9G2 specifically detects PD-L1 in murine EL4 lymphoma cells and targets the extracellular domain.

CHO-mPD-L1 transfectants.

Detect PD-L1 using this rat monoclonal Anti-PD-L1 Antibody, clone 10F.9G2, Cat. No. MABC991. It has been tested in Flow Cytometry, Function Induction, Immunohistochemistry, and Inhibition studies.
Immunohistochemistry Analysis: A representative lot detected PD-L1 in Immunohistochemistry applications (Grabie, N., et. al. (2007). Circulation. 116(18):2062-71).

Induces Function Analysis: Blockade with a representative lot of anti-PD-L1 combined with IL-2 enhanced antiviral CD8 T cell responses during chronic LCMV infection (West, E.E., et. al. (2013). J Clin Invest. 123(6):2604-15).

Inhibition Analysis: A representative lot blocked the action of PD-L1 (Grabie, N., et. al. (2007). Circulation. 116(18):2062-71;West, E.E., et. al. (2013). J Clin Invest. 123(6):2604-15;El Annan, J., et. al. (2010). Invest Ophthalmol Vis Sci. 51(7):3418-23).

Evaluated by Flow Cytometry in EL4 cells.

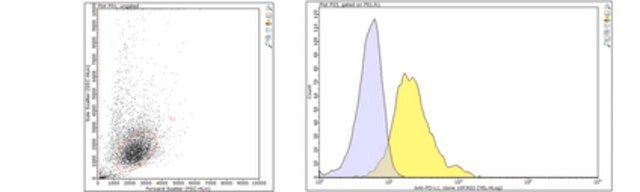

Flow Cytometry Analysis: 1 µg/mL of this antibody detected PD-L1 in one million EL4 cells.

Replaces: MABF405

Protein G purified
Format: Purified

Concentration: Please refer to lot specific datasheet.

100

rat

purified antibody

primary antibodies

10F.9G2, monoclonal

mouse

flow cytometry: suitable
immunohistochemistry: suitable
inhibition assay: suitable

IgG2bκ

NP_068693

Q9EP73

ambient

32.78 kDa calculated.

Unless otherwise stated in our catalog or other company documentation accompanying the product(s), our products are intended for research use only and are not to be used for any other purpose, which includes but is not limited to, unauthorized commercial uses, in vitro diagnostic uses, ex vivo or in vivo therapeutic uses or any type of consumption or application to humans or animals.

12 - Non Combustible Liquids

WGK 1
