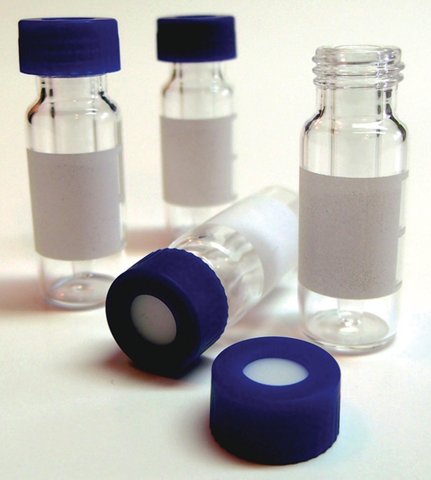

经过认证的 QSertVial 螺纹口样品瓶套装(熔接有内衬管的样品瓶)，12×32mm，300μL

NB.11

The QSertVial^™ is the ultimate microsampling device. It contains a 300 μL glass insert that is fused to the vial to form one precise integral unit. The rim of the insert is positioned slightly above the top of the vial so the septum can make a secure seal with the closure, eliminating evaporation and cross contamination. The insert is centered into the vial, 2 mm from the bottom, allowing for consistent sample recovery and eliminating problems causied by variation in insert depth. It is compatible with the majority of autosamplers in the market. It is available in a variety of kit configurations.

• Evaporation and cross contamination between insert and vial is eliminated
• Higher sample recovery with either bottom loading or side loading needles (point style #2 and #5). Residual dead volume can be as low as 4 μL, depending on precision adjustment of the instrument.
• Consistent sample recovery from vial to vial because the insert is always at the same precise depth within the vial.
• Wide mouth opening has larger target area reducing the possibility of bent needles.
• Easy sample identification of white mat finish marking panel.
• Available in clear or amber glass.

QSertVial is a trademark of QIS, Inc.

PTFE/silicone septum (bonded with slit)
amber glass vial
blue polypropylene hole cap

closure type blue polypropylene hole cap
closure type screw top vial

pkg of 100 ea

12 mm × 32 mm × 6 mm

0.3 mL

thread for 9 mm

Autosampler compatibility:
Agilent
Agilent 1050/1090A
Agilent 1100/1200
Agilent 7673A, 7683
Agilent 5890/7985A/6850/6890
LEAP Technologies
CTC LC PAL, GC PAL
CombiPAL
HTC PAL/HTS PAL
Shimadzu LC Autosamplers
SIL-HTa/SIL-HTc
SIL-10ADvp
SIL-10A/SIL-10Ai/SIL-10AP
Varian
CP-9010
8000/8035/8100/8200
9100/9090/9095
Vista
Waters
Alliance 2690/2695
Alliance 2790/2795
Acquity
