Optiscale

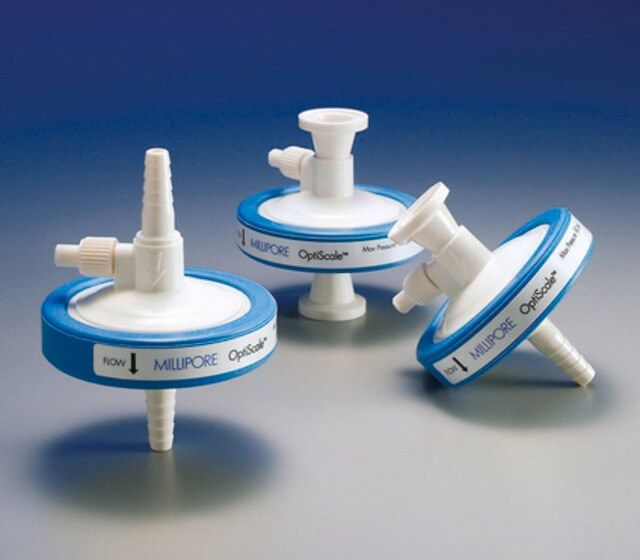

Optiscale® Capsule Filter Millipore Express® SHF
产品别名
Optiscale
Optiscale® Capsule Filter Millipore Express® SHF
Optiscale 47mm Millipore Express SHF 0.2 μm 3/4 in. TC/TC
基本信息
| eCl@ss | 32031690 |
| General description【一般描述】 | Device Configuration: 取样皿滤膜 |
| Other Notes【其他说明】 | These products are manufactured in a facility which adheres to FDA Good Manufacturing Practices. Directions for Use
|
| Preparation Note【制备说明】 | Sterilization Method 3 autoclave cycles of 60 min @ 126 °C |
| Analysis Note【分析说明】 | Will meet the USP Oxidizable Substances Test requirements after a water flush of ≥100 mL |
| Legal Information【法律信息】 | MILLIPORE EXPRESS is a registered trademark of Merck KGaA, Darmstadt, Germany OPTISCALE is a registered trademark of Merck KGaA, Darmstadt, Germany |
产品性质
| Quality Level【质量水平】 | 400 |
| material【物料】 | PVDF vent cap fluoroelastomer FKM seal polycarbonate polyethersulfone polypropylene support |
| reg. compliance | meets FDA Indirect Food Additive requirements cited in 21 CFR 177-182 (all component materials) |
| feature【特点】 | hydrophilic |
| manufacturer/tradename | Millipore Express® |
| parameter【参数】 | 25 ℃ max. inlet temp. 5.5 bar max. inlet pressure (80 psi) at 25 ℃ 80 psig max. inlet pressure |
| L【长度】 | 7.4 cm (2.91 in.) |
| cartridge nominal length | 2.91 in. (74 mm) |
| diam.【直径】 | 6.9 cm (2.7 in.) |
| filtration area【过滤面积】 | 17.7 cm2 |
| inlet connection diam. | 3/4 in. |
| outlet connection diam. | 3/4 in. |
| matrix【基质】 | Millipore Express® SHF |
| pore size【孔径】 | 0.2 μm nominal pore size 0.2 μm pore size |
| bubble point | ≥4000 mbar (58 psig), air with water at 23 ℃ |
| fitting【配件】 | inlet sanitary flange 19 mm ( outlet sanitary flange |
