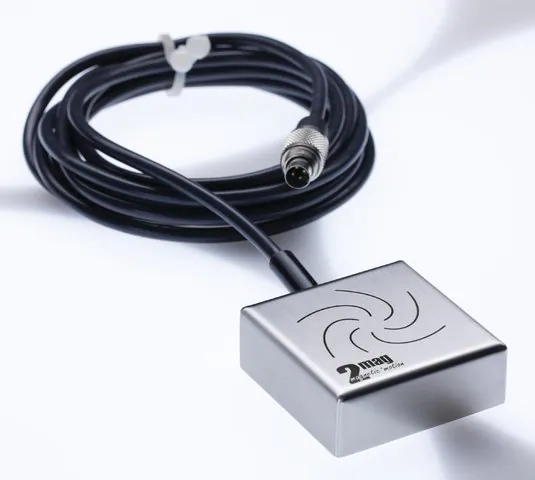

2MAG MIXdrive 1 XS compact single point stirrer for use with external control

NB.72

Ultra flat, wear-free magnetic stirrer with 1 stirring position,
optimized for stirring volume up to 1,000 ml, ideal size for integration.

1 stirring position, 100 percent maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for powerful
mixing of solutions, jerk-free stirring even at low speeds.
Fully encapsulated and hermetically sealed stainless steel
housing, thread M4 integrated in stainless-steel bottom
plate (not HT-version), IP68, water-, dust- and germproof,
extremely robust construction and performance, easy to
clean and maximum resistance, submersible in water- or
oil baths, suitable for the use in CO2-incubators and ovens.

Two different temperature areas available:
Basic-version up to +50 C, HT-version up to +95 C
submerged in water baths and up to +200 C in ovens,
individual dimensions on request.

Please order control unit separately!

48 V

stainless steel

Basic

positions 1
10 W Stirring power

pack of 1 ea

2mag 40300

≤50 ℃ temp. limit (in water)
-10-50 ℃ temp. limit (in air)

48 mm × 48 mm × 18 mm

× 48 mm × 48 mm

1-1000 mL

0.25 kg
