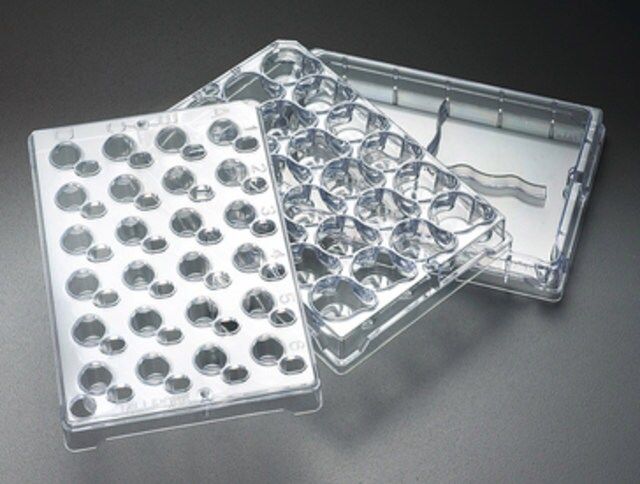

Millicell-24 Cell Culture Insert Plate

32039006

NB.22

Filter Code: PCF
Millicell cell culture insert plates are a patented device designed to support cell growth and differentiation of endothelial and epithelial cell lines, including CaCo-2.

The Millicell device is available with a 0.4 µm PCF and a variety of PET membrane pore sizes. The plate is designed for maximum user convenience and incorporates features such as apical assist for easier pipetting and basolateral access. To reduce the risk of monolayer contamination, the membrane plates have feet to elevate the plate above the work surface when disassembled from the feeder tray. Tear drop-shaped receiver wells eliminate air bubbles as plates are assembled.

Millicell plate are optimized to grow and sustain high integrity cell monolayers. Cells grown on Millicell plate membranes grow better than on plastic because the cells are nourished from both the apical and basolateral sides. Cell growth and function more closely mimic in vivo. Millicell plates are designed for analysis as well as cell growth and can be used manually or with automated cell seeding, feeding and washing systems

With this complete system, you can grow, feed, and analyze cells in one membrane-bottom plate. The plate can be used with either a single-well or a multi-well feeding tray. At the time of transport analysis, the plate is simply transferred to a multi-well transport tray for analysis.

This streamlined design enhances functionality with:

- Seed-and-feed systems

- Automated liquid handling systems and span pipettes

- Basolateral and apical access to cells

- Transepithelial electrical resistance (TEER) measurement systems

Opaque, Non-Sterile, 5.0 µm pore size, Polycarbonate (PC), 5 plates

24孔细胞培养板，单孔饲养板，盖子

Color Code: 透明

Automation Compatible: No

ISOPORE is a trademark of Merck KGaA, Darmstadt, Germany
Millicell is a registered trademark of Merck KGaA, Darmstadt, Germany

flat wells
polycarbonate membrane
polystyrene

400

Polycarbonate, 5 μm pore size, sterile, 24-well cell culture plate, single-well feeder tray, 24-well receiver tray and lid

sterile

lid

Millicell^®

50 ℃ max. temp.

cell attachment: suitable
cell culture | mammalian: suitable
cell differentiation: suitable
drug transporter assay: suitable
permeability assay: suitable

26.2 mm

128 mm

84.8 mm

9.5 mm

0.7 cm²

24 wells

400 μL

Isopore^™

5.0 μm pore size

Tissue Culture (TC)-treated surface

ambient

5 ea in Bulk packed
1 ea in Individually blister packaged
整批包装
