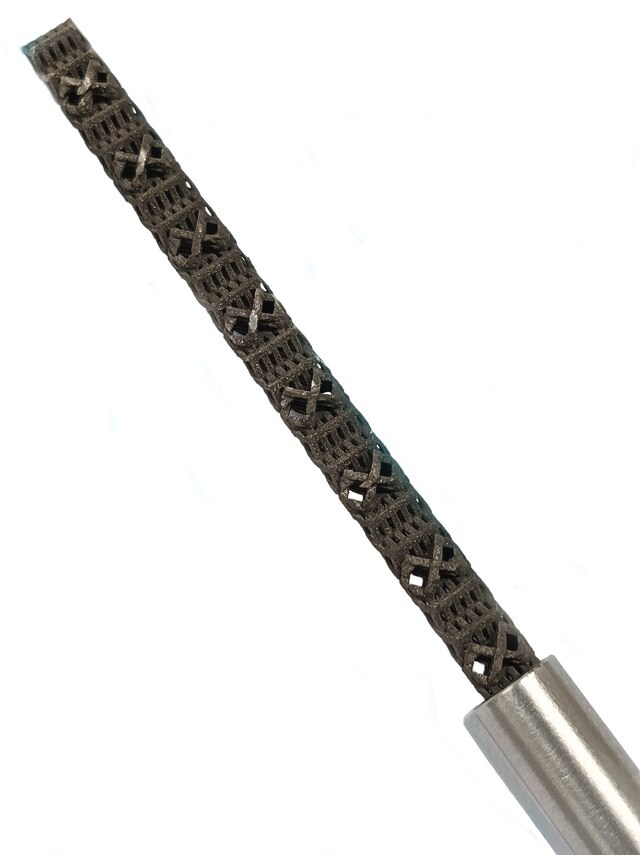

Platinum on alumina catalytic static mixer

100

6 mm × 150 mm

Platinum on alumina Catalytic Static Mixer 316L 6mm dia x 150mm is a general hydrogenation/dehydrogenation catalyst that exhibits high activity with good selectivity toward carbonyl over alkene reduction. This CSM is not stable in alkaline media.

• Core: 3D printed 316L stainless steel
• Catalyst: Pt/Al₂O₃ wash coated
• Shape: cylindrical
• Dimensions: 6mm diameter x 150mm length

Catalytic static mixers are a novel immobilized catalyst system, based on 3D printed mixer scaffolds containing a catalytic active layer. A variety of different active catalysts can be deposited on the metal mixer, allowing employment in many different classes of chemical reactions, such as hydrogenations, oxidations, C-C couplings and many more.

For additional information, including a general operational guide, click here

Continuous flow hydrogenations using novel catalytic static mixers inside a tubular reactor

Reductive aminations using a 3D printed supported metal(0) catalyst system

The use of catalytic static mixers for continuous flow gas-liquid and transfer hydrogenations in organic synthesis

Catalytic Static Mixers for the Continuous Flow Hydrogenation of a Key Intermediate of Linezolid (Zyvox)

Scalable continuous flow hydrogenations using Pd/Al₂O₃-coated rectangular cross-section 3D-printed static mixers

13 - Non Combustible Solids

WGK 3
