Carbon nanotube array, multi-walled
| 产品编号： | 4062042 |
| 规格： | vertically aligned on Si substrate, H 0.5 mm |
| CAS NO： | 308068-56-6 |
| 包装规格： | 1 EA |
| 产品类别： | 进口试剂 |
| 品牌： | Sigma-Aldrich |
| 优惠价： | 立即咨询 |
产品价格查看更多规格...
| 产品编号 | 包装单位 | 单价(元) | 国内现货 | 国外库存 | 询价单 |
| 4062042 | 1 EA | 6190 |
产品别名
308068-56-6
Carbon nanotube array, multi-walled
MWCNT array
CNT array
基本信息
| NACRES | NA.23 |

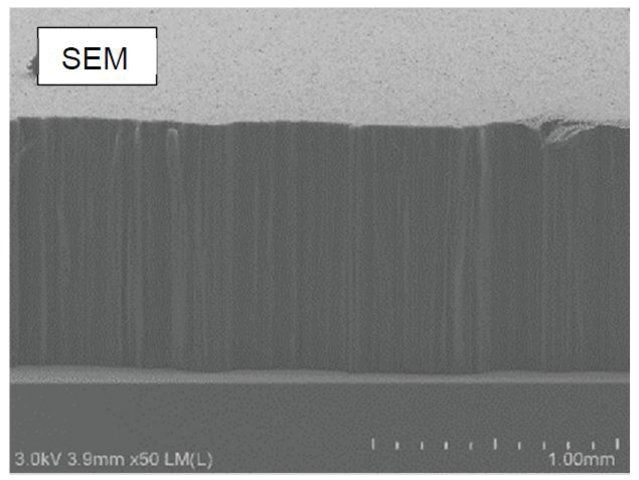

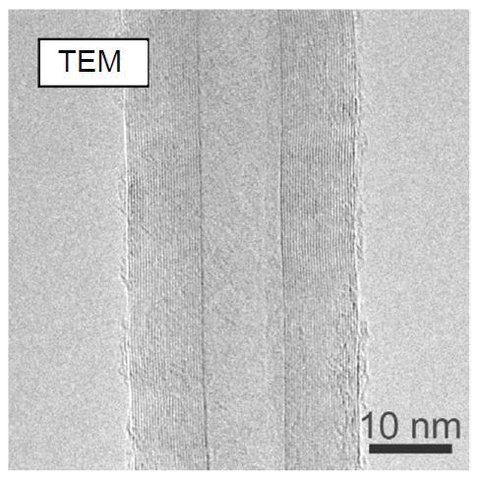

| General description【一般描述】 | Multi-walled carbon nanotubes (MWCNT) are vertically aligned on a Si substrate. MWCNT is as long as millimetre scale. Crystal quality of CNT is examined by Raman scattering measurement. Intensity ratio of G-peak (1580 cm-1) and D-peak (1350 cm-1) represents quality of graphitization of carbon materials. G/D of this CNT is ~3, showing high crystal quality. The high crystallinity is supported by transmission electron microscopy. |
| Preparation Note【制备说明】 | Chemical Vapor Deposition (CVD) method. |
产品性质
| Quality Level【质量水平】 | 100 |
| description【描述】 | Areal density: 1-5x109 cm-2 Form: 20 mm x 20 mm Si substrate |
| Assay【测定】 | 98% (carbon as CNT) |
| H【高度】 | 0.5 mm |
| diam. × L【直径× 长度】 | 10-40 nm × 0.5 ± 0.1 mm |
安全信息
| Storage Class Code【储存分类代码】 | 11 - Combustible Solids |
| WGK | WGK 3 |
