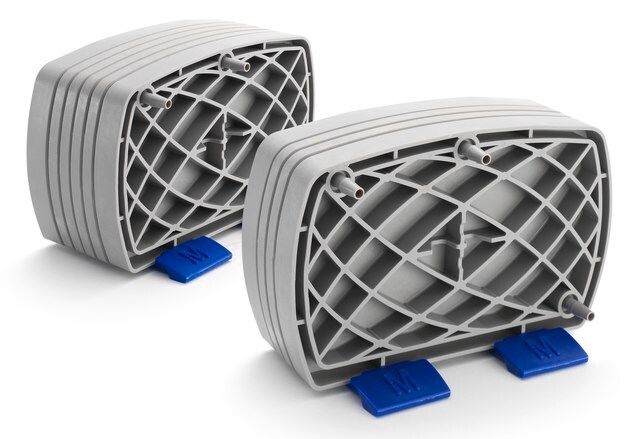

Millistak+^® HC Pro Pod Depth Filter

32031690

Device Configuration: lab scale Pod

Primary clarification directly out of the bioreactor

With non-woven material

Trace metals were measured post pure water flush of 50 L/m² of surface area and 24-hour static soak in pure water. Values based on average of metals extractibles data from three separate uPod device lots. The analysis was made by ICP-MS. The devices were not autoclaved.
Filter Grade: D0SP

Sterilization Method
1 autoclave cycle of 60 min @ 123 ºC, filtration performance may be impacted. Recommended for post use contamination only.

Product Water Conductivity at 25℃: post autoclave (1 cycle of 60 minutes at 123 ℃) and pure water flush of 10 liter per ft² (100 L/m²) of media surface area

MILLISTAK+ is a registered trademark of Merck KGaA, Darmstadt, Germany

acrylic
polypropylene
silica filter aid

400

Primary clarification directly out of the bioreactor

hydrophilic

Millistak+^®

2.1 bar max. differential pressure (30 psid) at 25 ℃ (Forward)
30 psid max. differential pressure (2.1 bar) at 37 ℃ (Reverse)
30 psid max. differential pressure (2.1 bar) at 4 ℃ (Forward)
30 psid max. inlet pressure (2.1 bar) at 25 ℃

5.5 in. (14 cm)

8.6 in. (22 cm)

0.014 m²

<0.25 EU/mL bacterial endotoxins (LAL test, Aqueous extraction)

sample type liquid

3.64-10.5 μS/cm at 25 ℃ (product water)

D0SP
