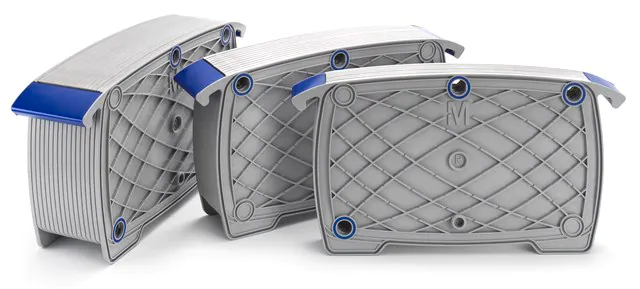

Millistak+^® HC Pro Pod Depth Filter

32031690

Device Configuration: Process Scale Pod

Primary clarification directly out of the bioreactor

With non-woven material

Trace metals were measured post pure water flush of 50 L/m² of surface area and 24-hour static soak in pure water. Values based on average of metals extractibles data from three separate uPod device lots. The analysis was made by ICP-MS. The devices were not autoclaved.
Filter Grade: D0SP

Sterilization Method
Integrity is maintained after 1 autoclave cycle of 60 min @ 123 ºC. Filtration performance may be impacted post autoclave. Recommended for post use decontamination only.

Product Water Conductivity at 25℃: after a pure water flush 50 L/m² (5 liter per ft²) of media surface area (300 LMH, 10 min). At the end of the flush, a sample was pulled for conductivity measurement. Devices were not autoclaved.

Emprove is a registered trademark of Merck KGaA, Darmstadt, Germany
MILLISTAK+ is a registered trademark of Merck KGaA, Darmstadt, Germany

acrylic
polypropylene
silica filter aid

400

Primary clarification directly out of the bioreactor

EMPROVE^® Filter

hydrophilic

Millistak+^®

30 psid max. differential pressure (2.1 bar) at 25 ℃ (Reverse)
30 psid max. differential pressure (2.1 bar) at 80 ℃ (Forward)
50 psid max. inlet pressure (3.5 bar) at 80 ℃

12.5 in. (32 cm)

24.2 in. (62 cm)

1.6 in. (4.1 cm)

0.11 m²

<0.25 EU/mL bacterial endotoxins (LAL test, Aqueous extraction)

sample type liquid

18.9-41.5 μS/cm at 25 ℃ (product water)

D0SP
