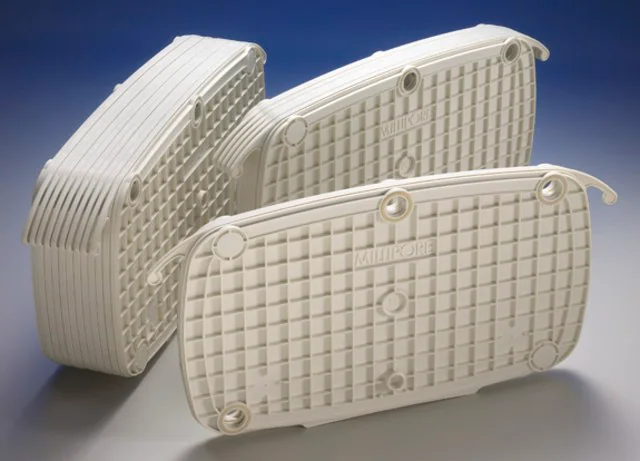

Millistak+^® HC Pod Depth Filter

32031690

Device Configuration: Pod

Primary clarification directly out of the bioreactor

Filter Grade: D0HC
Per 24 hour soak in 10 L pure water post autoclave (1 cycle of 60 minutes at 123 °C) and pure water flush of 100 L/m² (10 L/ft²) of media surface area:
Sodium: <3.0 mg/ft²
Calcium: <0.7 mg/ft²
Magnesium: <0.2 mg/ft²
Mercury: <0.01 mg/ft²
Chromium: <0.01 mg/ft²
Aluminum: <0.01 mg/ft²
Potassium: <0.01 mg/ft²
Lead: <0.01 mg/ft²
Arsenic: <0.01 mg/ft²
Cobalt: <0.01 mg/ft²
Iron: <0.01 mg/ft²
Manganese: <0.01 mg/ft²
Titanium: <0.01 mg/ft²
Zinc: <0.01 mg/ft²

Sterilization Method
1 autoclave cycle of 60 min @ 123 °C

Gravimetric Extractables: After 24 hour static soak in pure water (Type 1 DI Water) post autoclave (1 cycle of 60 minutes at 123 °C) and pure water flush of 100 L/m² of media surface area
Total Organic Carbon (TOC) Residue: post autoclave (1 cycle of 60 minutes at 123 ℃) and pure water flush of 100 L/m² of media surface area
Product Water Conductivity at 25℃: post autoclave (1 cycle of 60 minutes at 123 ℃) and pure water flush of 10 liters per ft² (100 L/m²) of media surface area

MILLISTAK+ is a registered trademark of Merck KGaA, Darmstadt, Germany

400

cellulose
filter aid (inorganic)
glass fiber-reinforced polypropylene

Primary clarification directly out of the bioreactor

hydrophilic

Millistak+^®

1 bar max. differential pressure (15 psid) at 80 ℃ (Forward)
1 bar max. inlet pressure (15 psi) at 80 ℃
2.1 bar max. differential pressure (30 psid) at 25 ℃ (Forward)
2.1 bar max. differential pressure (30 psid) at 25 ℃ (Reverse)
3.5 bar max. inlet pressure (50 psi) at 25 ℃

32 cm (12.5 in.)

62 cm (24.2 in.)

0.11 m²

<0.25 EU/mL bacterial endotoxins (LAL test, Aqueous extraction)

39-69 mg/m²

720-1260 ppb

sample type liquid

8.66-10.5 μS/cm at 25 ℃ (product water)

D0HC

13 - Non Combustible Solids

nwg
