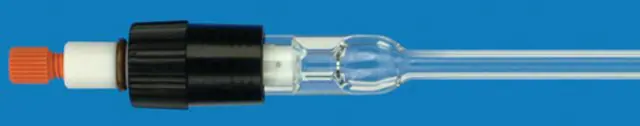

Wilmad^® quick pressure valve NMR tube 5 mm diam.

32129209

SB.32

Specially designed to simplify the work of NMR scientists performing catalytic, gas-liquid phase reactions, air sensitive samples, and elevated temperature studies using low boiling point solvents and can be used for EPR spectrometry too.

The Quick Pressure Valve can also be attached to a quartz sample tube for EPR by using a graded seal that connects the Pyrex portion of the valve to the quartz tube.

• Easy to operate - one turn to open, one turn to close
• Larger opening for convenient sample addition
• Light weight, concentric design for better performance
• Unions and fittings for both ¹/₁₆ in. and ¹/₈ in. tubing

For instructions, see Quick Pressure Valve Instructions.

Wilmad is a registered trademark of SP Industries

borosilicate tube
colorless tube

neck thread external thread
pressure 200 psi

Wilmad 522-QPV-8

300 MHz frequency

8 in.

51 μm

5 mm

1.40 mm
