Wilmad® coaxial insert
| 产品编号： | 3260015 |
| 规格： | stem L 50 mm, reference capacity 60 μL, sample capacity 530 μL |
| 包装规格： | 1 EA |
| 产品类别： | 仪器耗材 |
| 优惠价： | 立即咨询 |
Wilmad® coaxial insert
Wilmad nmr tubes
nmr sample tubes
nmr tubes
基本信息
| NACRES | SB.32 |
| General description【一般描述】 | Precision, all-glass construction virtually eliminates sidebands. Superior to PTFE inserts in variable-temperature experiments. Upper section of insert fits snugly into the outer NMR tube; 2 mm O.D. insert stem is held straight within 0.013 mm. Use inserts with 5 mm O.D. × 7 in. L thin-wall NMR tubes only. Each insert supplied with a closing cap. Coaxial inserts are applied in external referencing and locking, studying molecular interactions and determining magnetic susceptibility. Outer tube must be ordered separately based on magnetic field strength. |
| Legal Information【法律信息】 | Wilmad is a registered trademark of SP Industries |
产品性质
| manufacturer/tradename | Wilmad WGS-5BL |

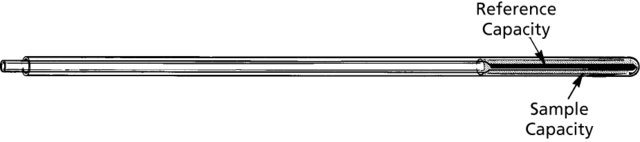

| reference capacity【参考容量】 | 60 μL |
| sample capacity【样品容量】 | 530 μL |
| stem L【柱长度】 | 50 mm |
