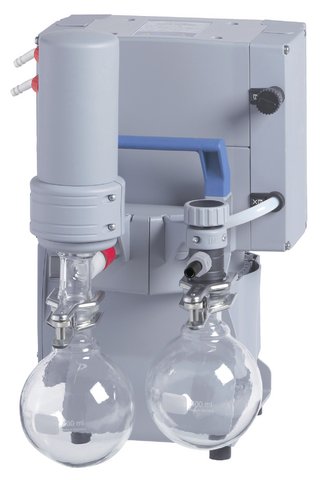

Vacuubrand chemistry vacuum system

NB.79

This chemistry vacuum system has a wide range of applications, like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories. This system is suited for high vacuum requirements with high boiling solvents. Typical applications are rotary evaporators and drying ovens.

The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling of solvents and active protection of the environment. Items supplied completely mounted, ready for use, with manual.

• Outstanding chemical resistance and superior vapor tolerance
• Exceptionally high performance even at low vacuum
• Excellent ultimate vacuum even with gas ballast
• Whisper quiet and very low vibration
• Excellent environmental friendliness due to efficient solvent recovery
• IP40 rated protection

Order 10 mm connecting tubing separately.

CE compliant
(Number of heads / stages 4/3)

Vacuubrand MD 4C NT+AK+EK

1.5 mbar vacuum
3 mbar vacuum (with gas ballast)
3.4/3.8 m³/h pumping speed

10 mm , connection nozzle

326 mm × 243 mm × 402 mm

6-8 mm , coolant connection 2 x hose nozzle
