Troemner Lab-Frame standard kit with aluminum rods

NB.35

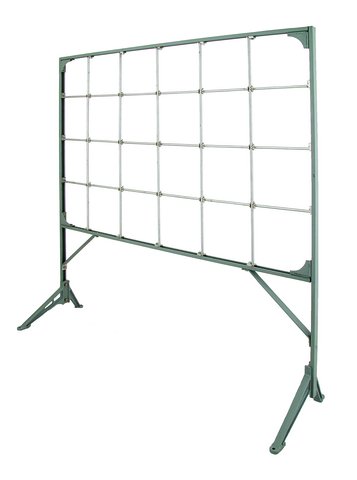

Floor mounted, free-standing unit is specifically designed for heavy-duty work such as pilot plant set ups. Outside frame is constructed of a strong, but light weight steel channel. Interior lattice uses a horizontal channel connector; one end accommodates the rod, the other end fits into the channel and locks tightly with a bolt. Loosen the bolt, and the connector slides easily along the channel track for simple lattice adjustment. Entire apparatus is supported on sturdy, counter-weighted cast iron feet, which may be bolted to the floor for added stability required in top heavy installations. Overall dimensions are 75 in. H (1219 mm) x 72 in. W (1829 mm).
Components:

• 48 in. (1219 mm) rods (qty 5)
• 72 in. (1829 mm) rods (qty 3)
• S-connectors (qty 15)
• Channel connectors (qty 16)
• Clamping nuts (qty 24)
• Cast iron feet, 21.7 in. (qty 2)
• Frame set (qty 1)
• Wrench (qty 1)

Standard Lab-Frame kits are available in five sizes and three lattice rod choices:

• Traditional center-less ground aluminum
• Non-corroding fiberglass
• Tough stainless steel

A range of lab-frames specifically designed to fit within laboratory fume hood include stainless steel rods. Nickel-plated connectors and lab-frame feet are standard in all kits. Lab-frame bases may be permanently mounted to bench top with screws (included).

Troemner 916178

75 in. × 72 in.

13 mm
