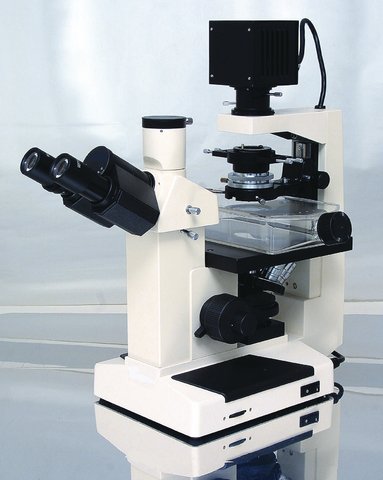

Jenco^TM inverted compound microscopes

Jenco CP-2A1-2

Jenco Inverted Microscope, Inverted Microscope, Cell Culture, Microscopes, Microscopy, Inverted Compound, Inversted Compound Microscope

Jenco introduces a high optical standard on a versatile frame at budget conscious levels. The long working distance condenser (50 mm) and objectives (six supplied) provide brilliant resolved images in both phase contrast and brightfield techniques. The condenser swings out to accommodate roller bottles or other large cultivation vessels.

• Affordable - Jenco delivers exacting performance for routine research without consuming your budget
• Versatile - trinocular body for image documentation; condenser design for observation of virtually all vessel types; mechanical stage with inserts for well plates and petri dishes; three objectives each for both phase contrast and brightfield
• Durable - an all metal frame with an all metal focusing mechanism ensures this instrument will perform well beyond the industry leading 5 Year Warranty
• 230 V units are CE Compliant

Key Specifications:
Optical body - Seidentopf design inclined 30°, 55 to 75 mm interpupillary adjustment, 360° rotation
Nosepiece - quintuple, ball bearing
Eye pieces - 10X, Focal Length 25 mm, FN 20 mm
Focus mechanism - adjustable tension control to prohibit drift and adjustable up-stop to protect objective lenses; dial markings at 0.002 mm increments
Condenser - 1.25 N.A. 2 element Abbe with iris diaphragm and rack and pinion focusing; 55 mm working distance, swing out working distance is 3 inches
Kohler Illumination, field diaphragm, 30 watt, 6 volt Halogen bulb with electronic dimmer
Mechanical stage: (WHD) (in/cm) 8.25 x 8.875 / 20.95 x 22.54; Right-hand Coaxial dropdown X-Y Control Knobs; Four Inserts for: well plates (13 x 8 cm and 8 x 5 cm ) petri dish (6.8 cm diam.) and slides (7.5 x 3.5 cm and 7.5 x 2.5 cm)
Dimensions: (WHD) (in/cm) 9 x 22.5 x 21.5 / 22.86 x 57.15 x 54.61; Gross Weight: (lb/kg) 50/22.7

Microscope Includes:
The six objectives in the table, dust cover, three color filters, spare halogen lamp and fuse, phase centering telescope, phase annulus sliders and instruction manual.

Jenco is a trademark of Jenco International, Inc.
