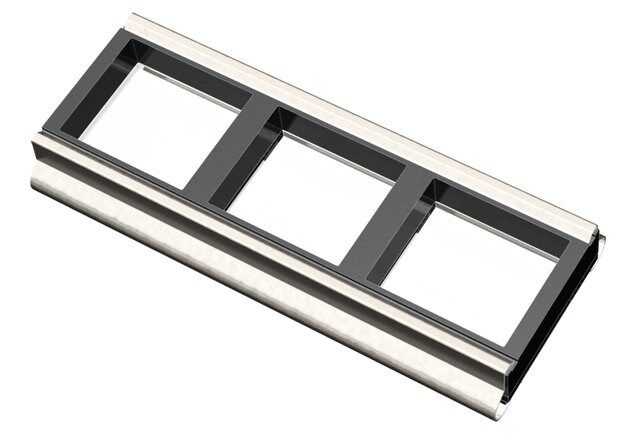

Grace Bio-Labs ProPlate^® microarray system, slide module

NB.15

Grace Bio-Labs ProPlate^® multi-array chambers (microarray systems) are designed to be used with ONCYTE^® nitrocellulose-coated slides. These multi-array chambers integrate microscope slide based microarray technology with high-throughput (HTS applications) microtiter plate processing. Up to 64 individual arrays can be assayed per slide.

Three or four slides fit into a tray (depending on clip choice). The resulting multi-array chamber tray set produces a modular plate with a standard microtiter plate footprint and well spacing allowing high-throughput robotic processing of up to 256 arrays.

Features:

• Up to 64 leak-proof wells on any slide surface without the use of adhesive
• Microtiter plate well spacing facilitates use with multichannel pipettes
• 7 x 7 mm square wells are ideal for high content arrays 5-350 ul well volumes accommodate small reagent and large wash volumes

Oncyte is a registered trademark of Grace Bio-Labs, Inc.
ProPlate is a registered trademark of Grace Bio-Labs, Inc.

black silicon
rectangular wells

non-sterile

lid: no
wells 3

Grace Bio-Labs 248863

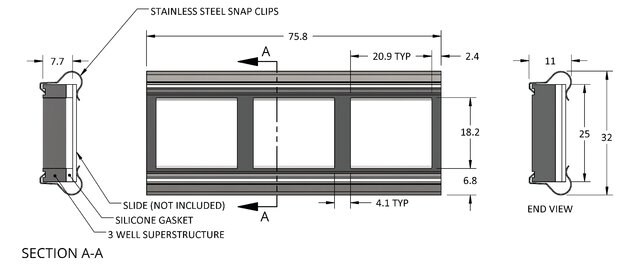

18 mm × 20 mm

3 wells

350 μL

none
