Grace Bio-Labs CultureWell^TM chambered coverglass

NB.22

Grace Bio-Labs chambered coverglass products are optimal for high resolution microscopy.

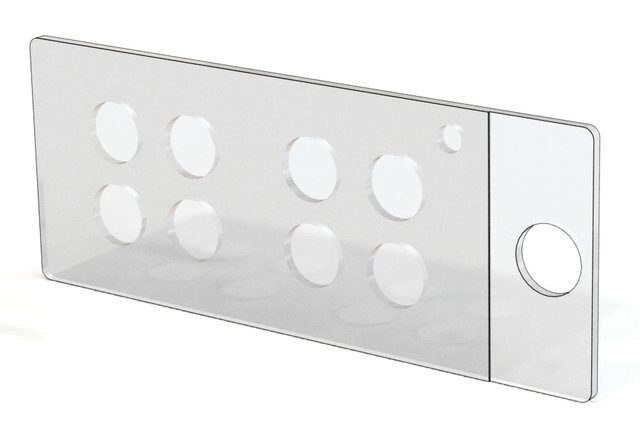

Grace Bio-Labs chambered coverglass products consist of removable / reusable non-cytotoxic silicone gaskets secured to 24 mm x 50 mm, number 1.5 German coverglass. They may be placed in sterile culture plates or 100 mm diameter culture dishes.

• The thin flat coverglass is the optimal platform for high resolution microscopy and high-sensitivity, quantitative, fluorescent imaging.
• Leak-proof design eliminates well-to-well cross contamination.
• Gaskets stabilize coverglass and provide convenient handling using conventional microscope slide holders and accessories.
• Gaskets are removable for high resolution imaging and may be resterilized and reused.
• Well spacing facilitates liquid handling utilizing multichannel pipettes and robotic dispensers.

Culturewell is a trademark of Grace Bio-Labs, Inc.

borosilicate glass backing
clear silicon chamber
colorless

(sterile)
sterile

wells 8

Grace Bio-Labs 103380

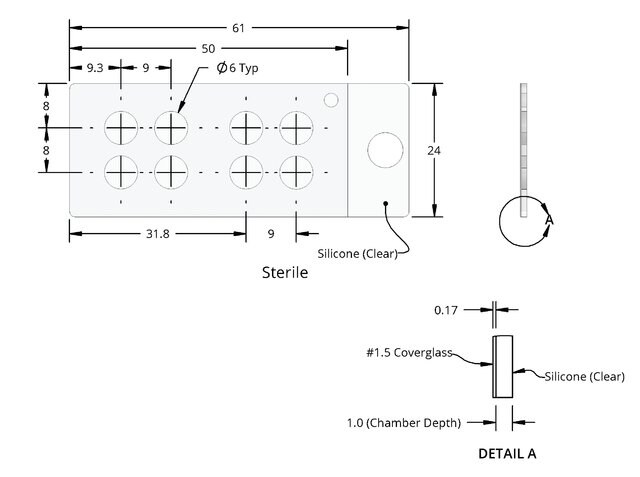

61 mm × 24 mm

0.3 cm²

6 mm × 1 mm

15-30 μL

8
