Duran^® stirred reactor systems, for GL 80 bottles

NB.17

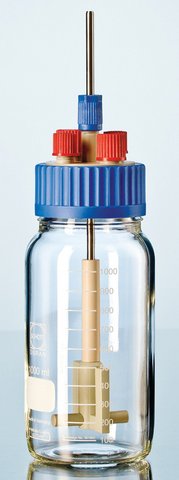

The GL 80 stirred reactor is suitable for a wide range of laboratory mixing processes. The connections provided permit addition or removal of media from the bottle during the mixing process.

The whole assembly can be autoclaved and is therefore suitable for use in the biological sector. By using components from the GLS 80 connection system, an additional media bottle (O.D. hose: 1.6-12.0 mm) can be connected or a sterile pressure equalizer attached. Drive for the stirrer is provided by a standard commercial magnetic stirrer.

The variable agitator shaft can be used in Duran^® GL 80 laboratory glass bottles (1,000 and 2,000 mL) and provides notably improved mixing in comparison with standard magnetic stir bars.

The agitating element is exchangeable and use up to 500 rpm is possible.

DURAN is a registered trademark of DWK Life Sciences

glass bottle
polypropylene cap
round bottle

Joint threadedGL 80

with cap

pack of 1 ea

DURAN 1200380

1,000 mL

GL 14 connector (2 x GL14 screw cap (PBT red))
GL 18 connector (2 x GL18 screw cap (PBT red))
