Corning^® 96 well protein crystallization plates

NB.15

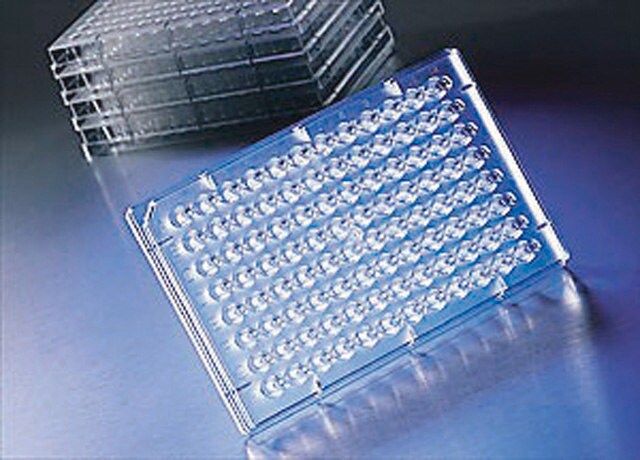

The Corning 96 well protein crystallization plate features large reservoir wells with corresponding protein wells. It is made of an advanced optical polymer (cyclic olefin copolymer (COC)) superior to polypropylene and polystyrene, which has higher optical clarity and greater resistance to organic solvents. The plate can be used for the sitting-drop method for high-throughput protein crystallization, and is compatible with manual pipettors and robotic operations.

The large reservoir well has a maximum volume of 100 μL, with a recommended working volume between 25 to 755 μL for screen reagents. The small protein well has a volume range of 1-4 μL.

• Each well contains one 4μL conical flat bottom protein well and one 100μL reagent reservoir
• Low volume reagent reservoir saves on reagent costs
• Designed for sitting drop vapor diffusion high throughput protein crystallization
• Treated to be more hydrophilic to promote crystal centering and reduce wicking
• Manufactured from an advanced Cyclic Olefin Copolymer (COC) with high resistance to commonly used solvents, including acetone, acetic acid, butanone, ethanol, isopropanol, methanol, DMSO, nitric acid (65%), sulfuric acid (40%), hydrochloric acid (36%), and ammonia solution (33%) and improved transparency
• Low water absorption of the polymer prevents loss of protein drop volume
• Reservoir numbers are embossed on each individual well for easy identification

Corning is a registered trademark of Corning, Inc.

clear plate
conical bottom clear wells
cyclic olefin copolymer (COC)

non-sterile

lid: no
plate format: 96 well
protein wells: 1/reservoir well

pack of 10 ea
case of 50 ea

Corning 3551

100 μL

96 wells

4 μL , protein well volume

25-755 μL

clear

suitable for (sitting drop vapor diffusion high-throughput (HT) protein crystallization)

hydrophillic surface
